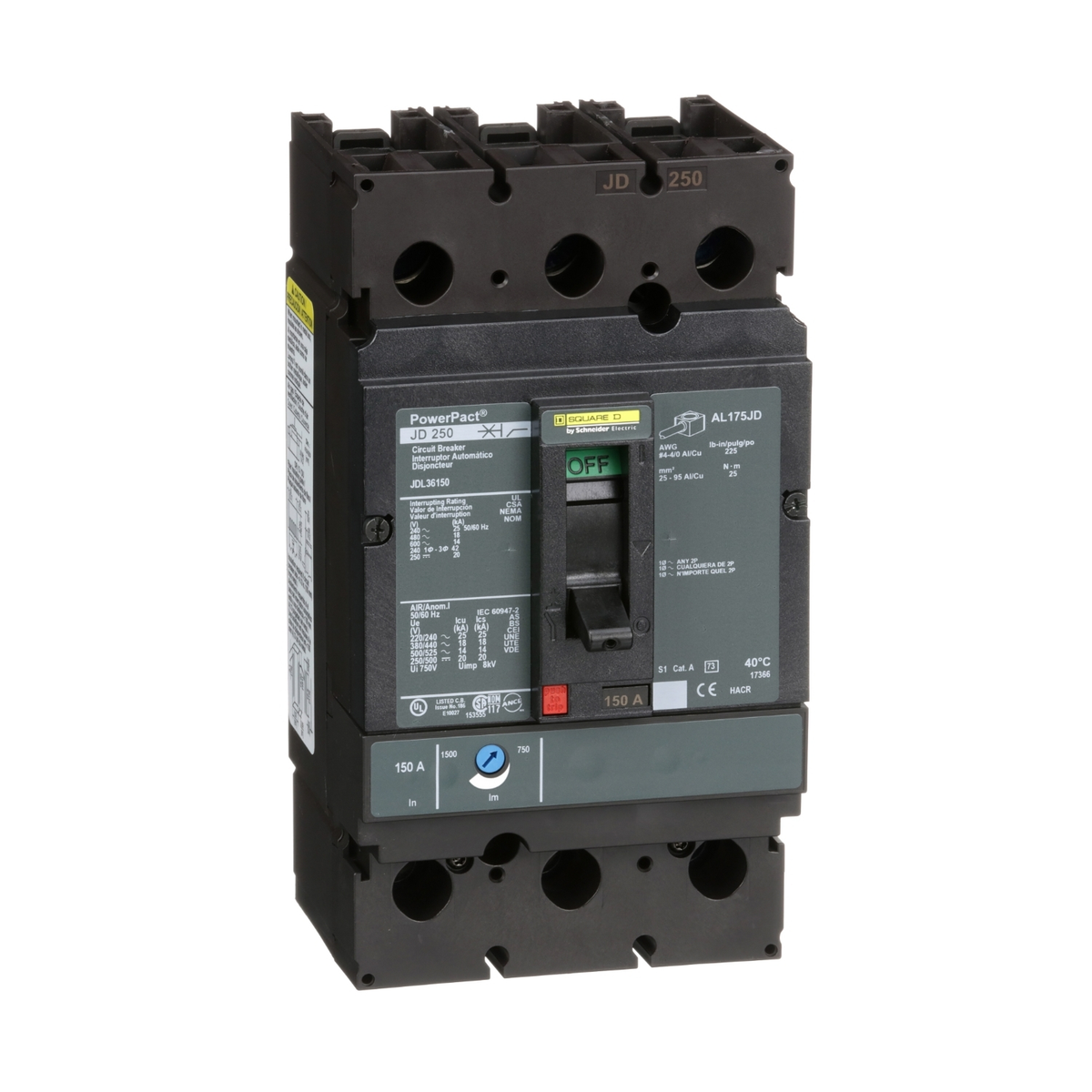

JDL36225 Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

JDL36225 Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

$456.80 USD
$456.80 USD
Sale Sold out
Shipping calculated at checkout.
Main
Range PowerPact
Product name PowerPact J
Device Application Distribution
Complementary
Line Rated Current 225 A
Number of Poles 3P
Control Type Toggle
Breaking capacity code D
Breaking capacity 25 kA 240 V AC 50/60 Hz UL 489
18 kA 480 V AC 50/60 Hz
14 kA 600 V AC 50/60 Hz
20 kA 250 V DC
[Ue] rated operational voltage 600 V AC 50/60 Hz IEC 60947-3
Network Frequency 50/60 Hz
[Ics] rated service breaking capacity 25 kA 220/240 V AC 50/60 Hz IEC 60947-2
18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2
14 kA 500/525 V AC 50/60 Hz IEC 60947-2
20 kA 250 V DC IEC 60947-2
20 kA 500 V DC IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV IEC 60947-2
Trip unit technology Thermal-magnetic
Magnetic tripping current 2250 A
Magnetic hold current 1125 A
Continuous current rating 80 %
[Ui] rated insulation voltage 750 V IEC 60947-2
Protection Type Overload protection
Short-circuit protection
Suitability for isolation Yes IEC 60947-2
Utilisation category Category A
AWG gauge 3/0 AWG...350 kcmil aluminium/copper terminals
Local signalling Switched off (OFF) 1 trip indicator green)
Mounting mode Unit mount lug)
Mounting Support Lug
Electrical connection Lugs, line
Lugs, load
Terminal identifier AL250JD
Long time pick-up adjustment range 0.25...1 x In
Mounting Height 4.5 in (114.3 mm)
Tightening torque 221.3 lbf.in (25 N.m) 0.1…0.3 in² (95…185 mm²) (3/0 AWG...350 kcmil)
Number of slots 2 auxiliary switch OF plug-in)
1 alarm switch SD plug-in)
1 overcurrent trip switch SDE plug-in)
1 voltage release MN or MX plug-in)
Power wire stripping length 1.0 in (25 mm)
Height 7.5 in (191 mm)
Width 4.09 in (104 mm)
Depth 3.4 in (86 mm)
Net Weight 5.3 lb(US) (2.4 kg)
Phase connection ABC
Communication interface Modbus
Ethernet
