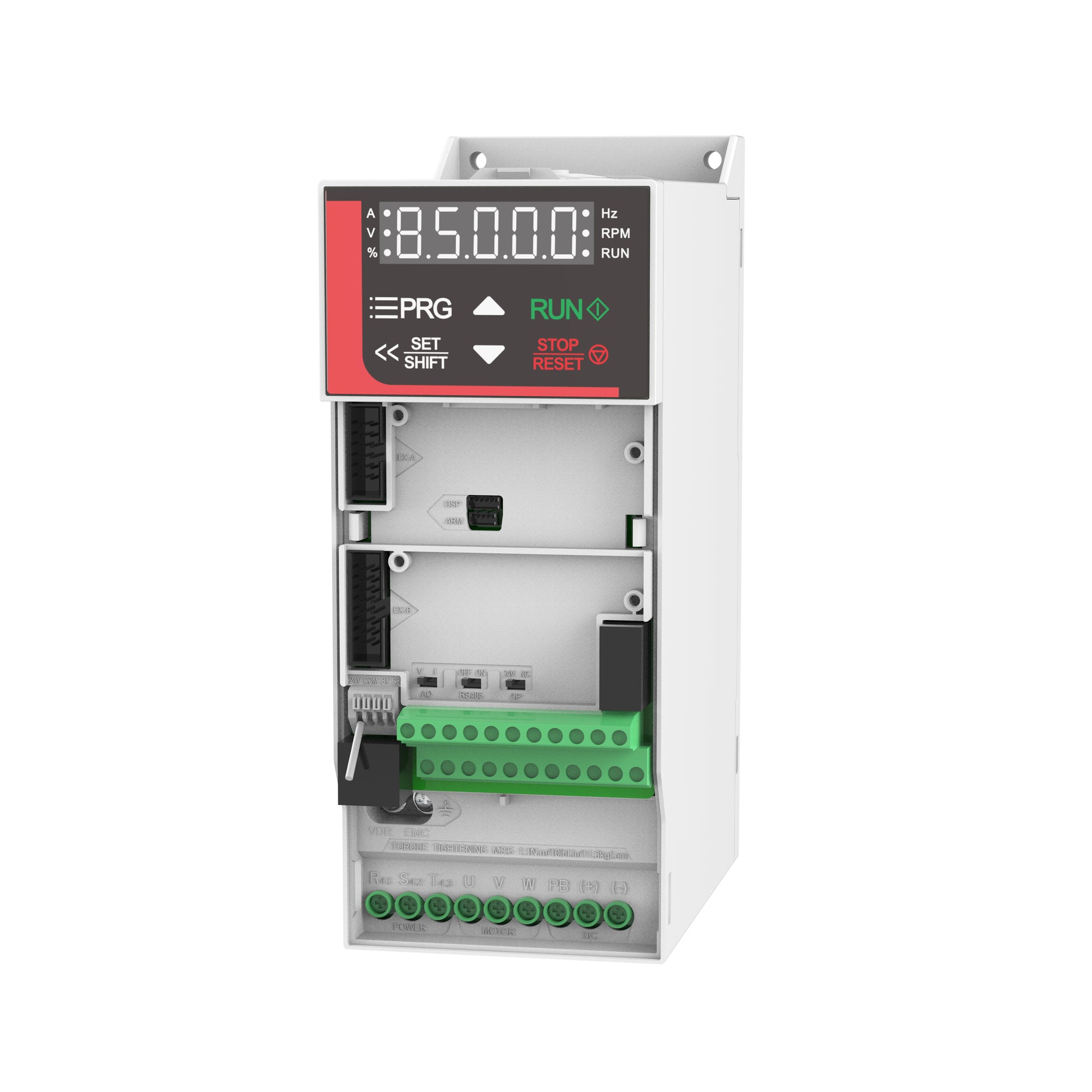

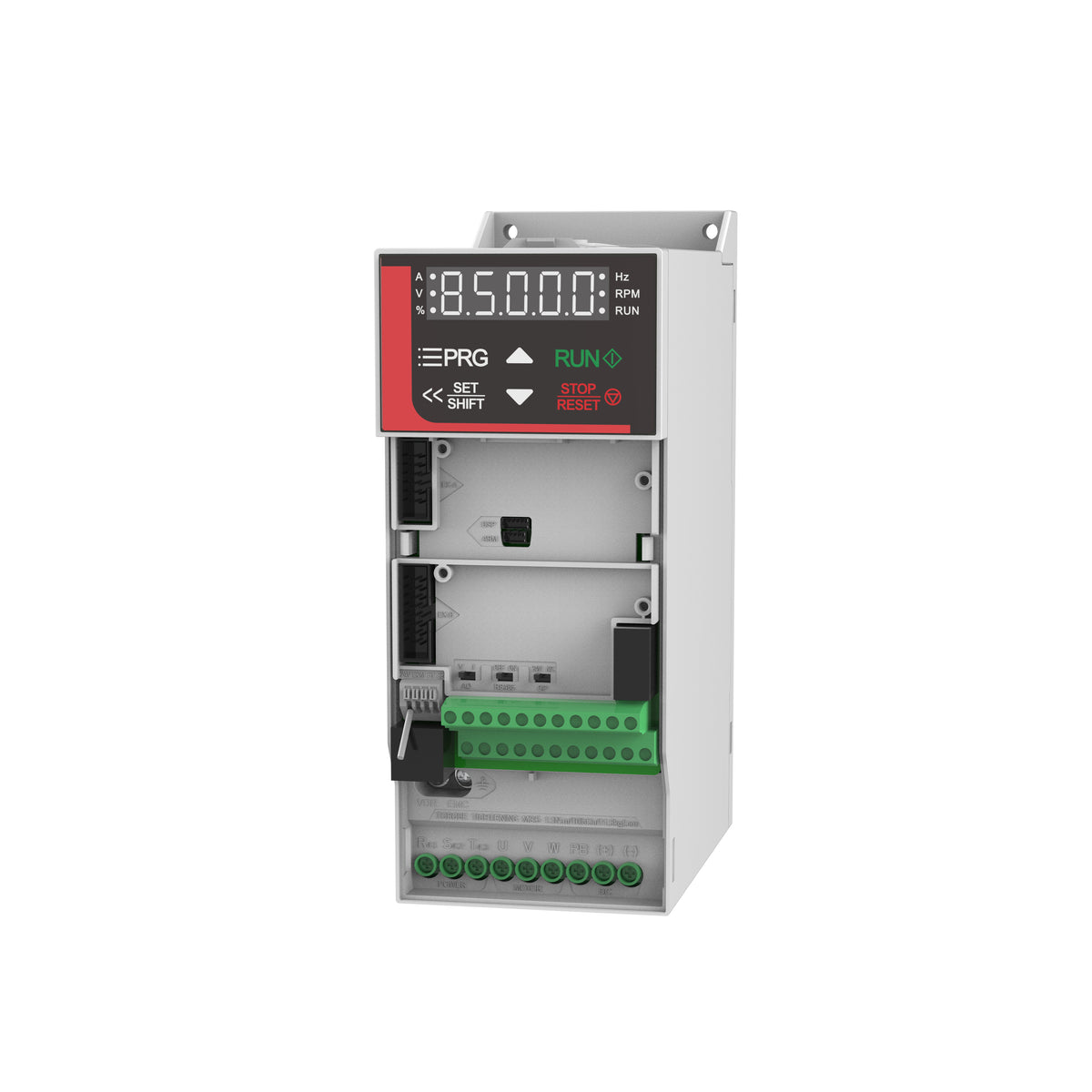

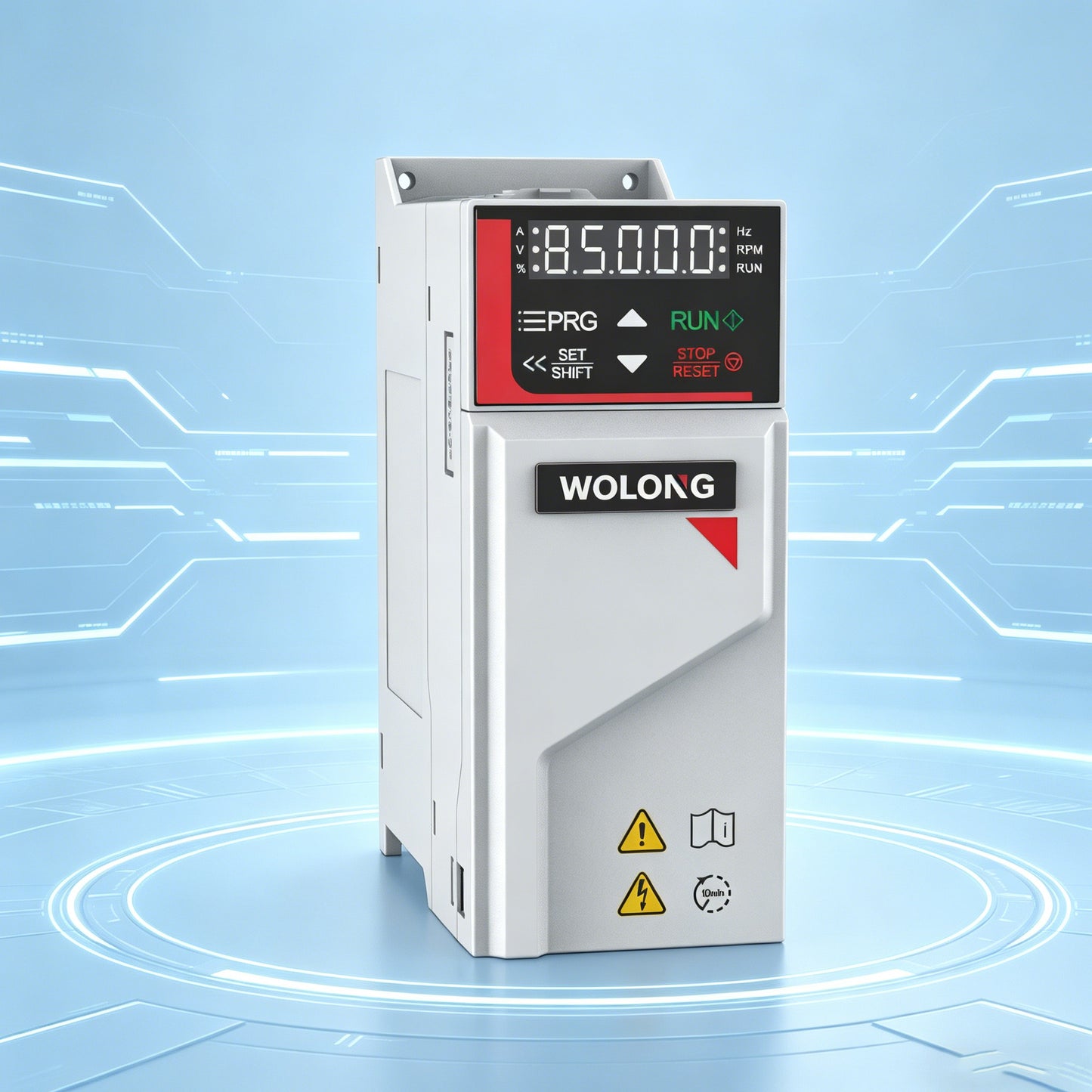

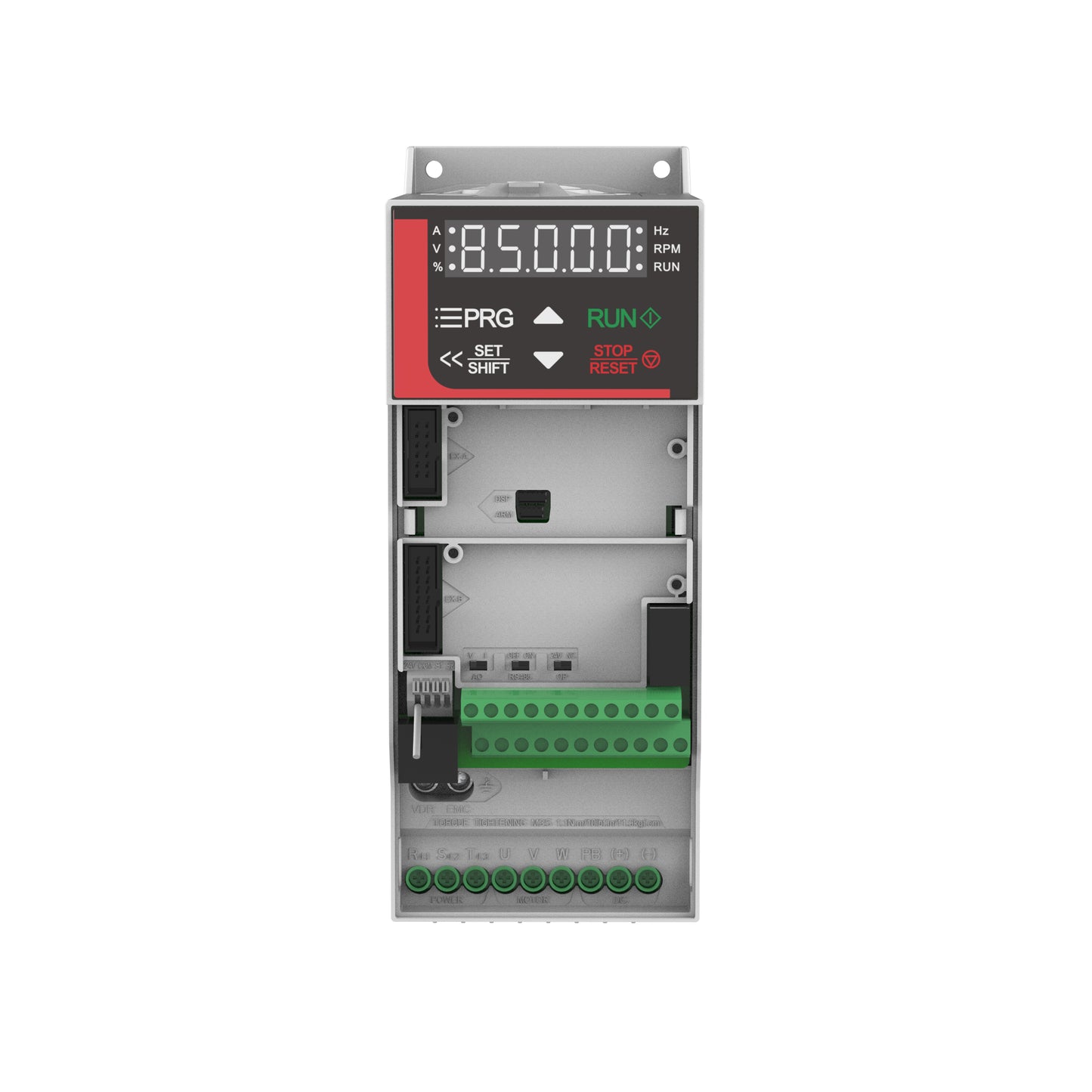

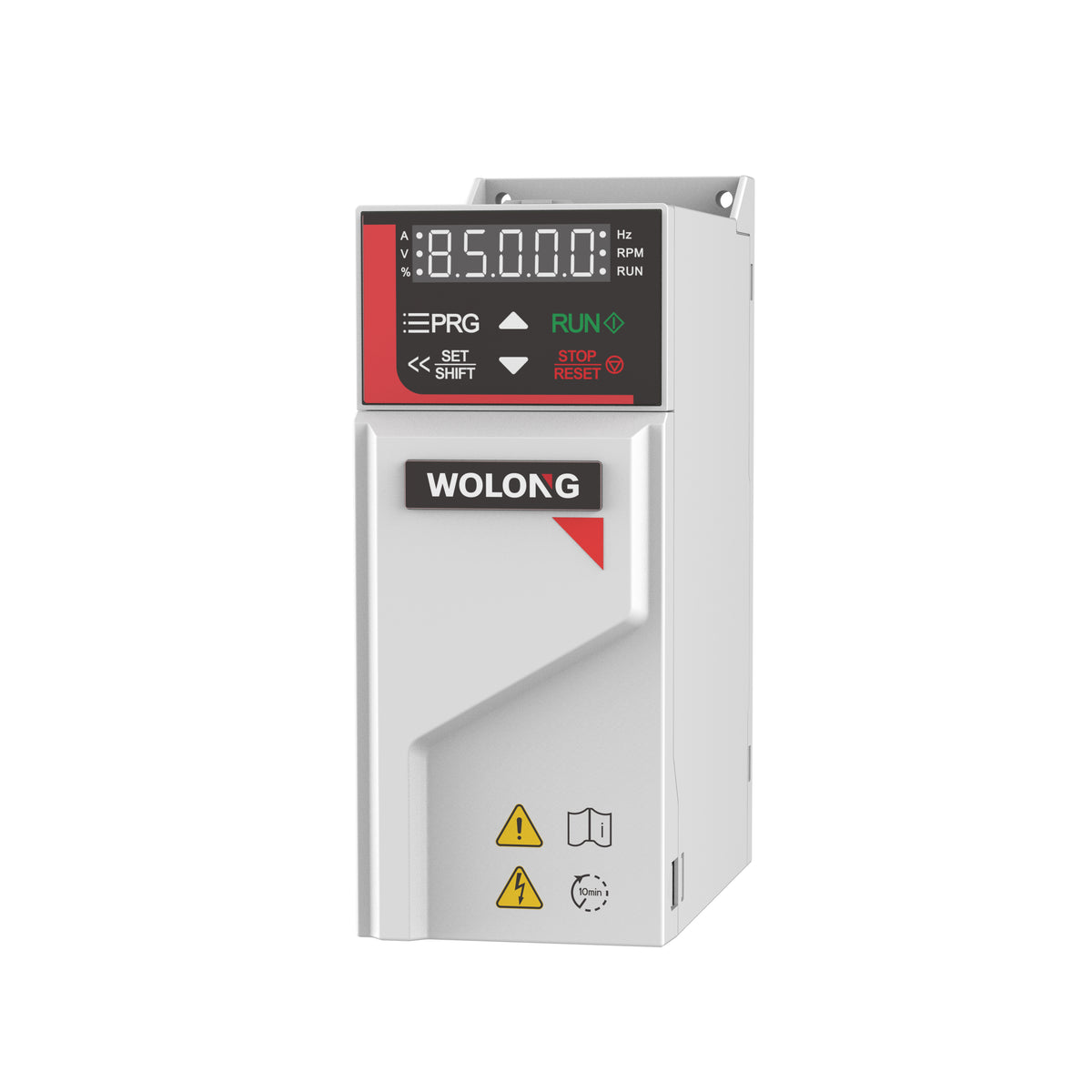

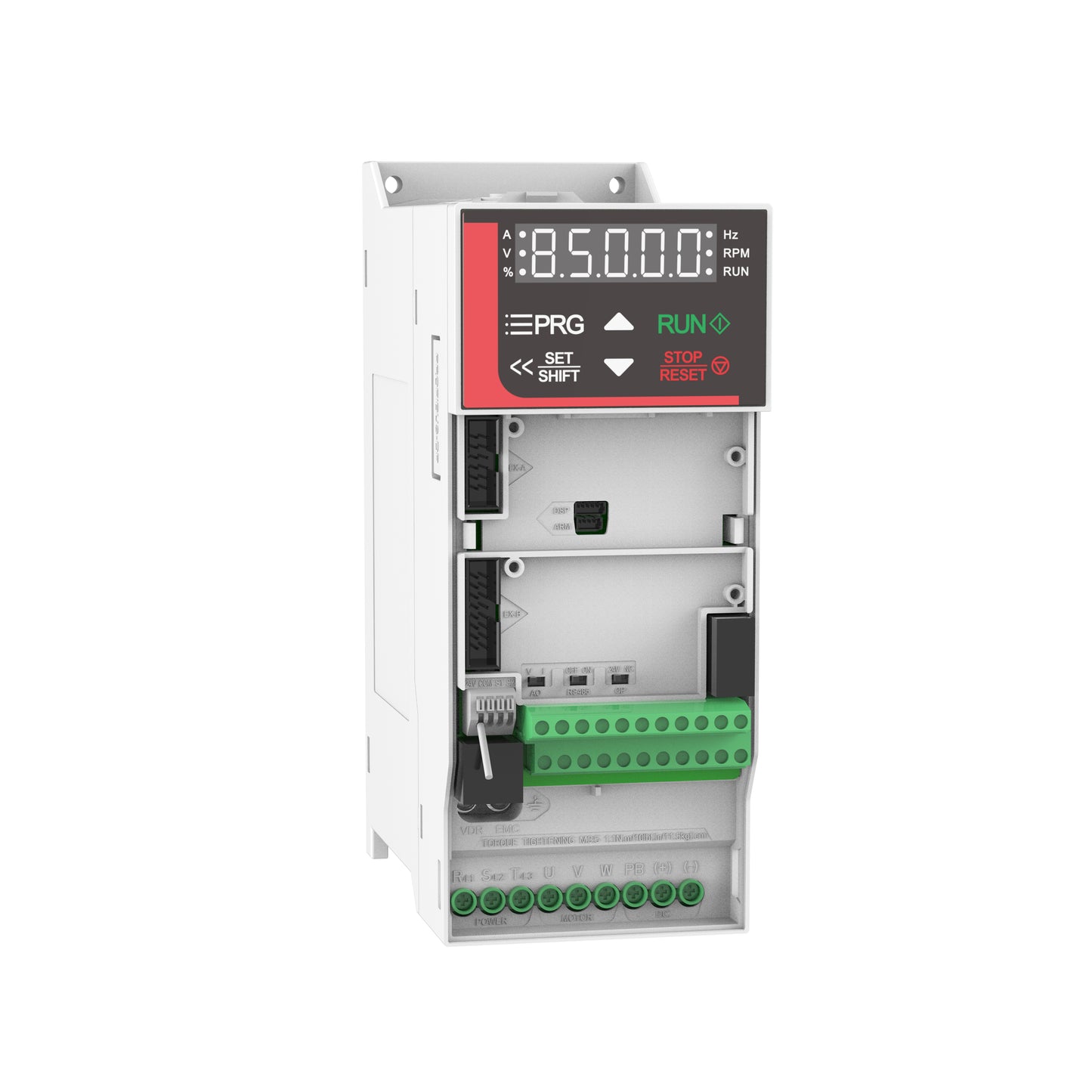

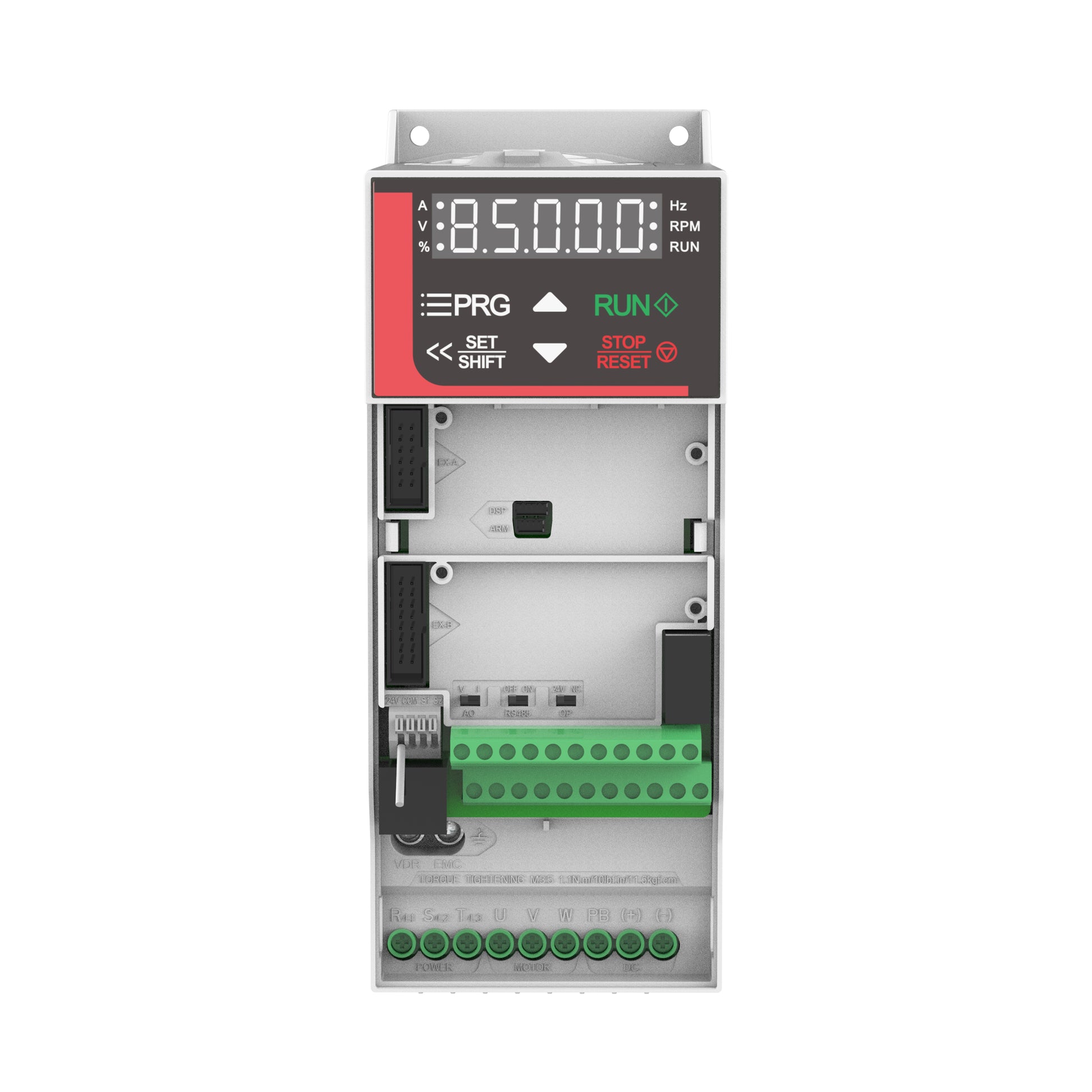

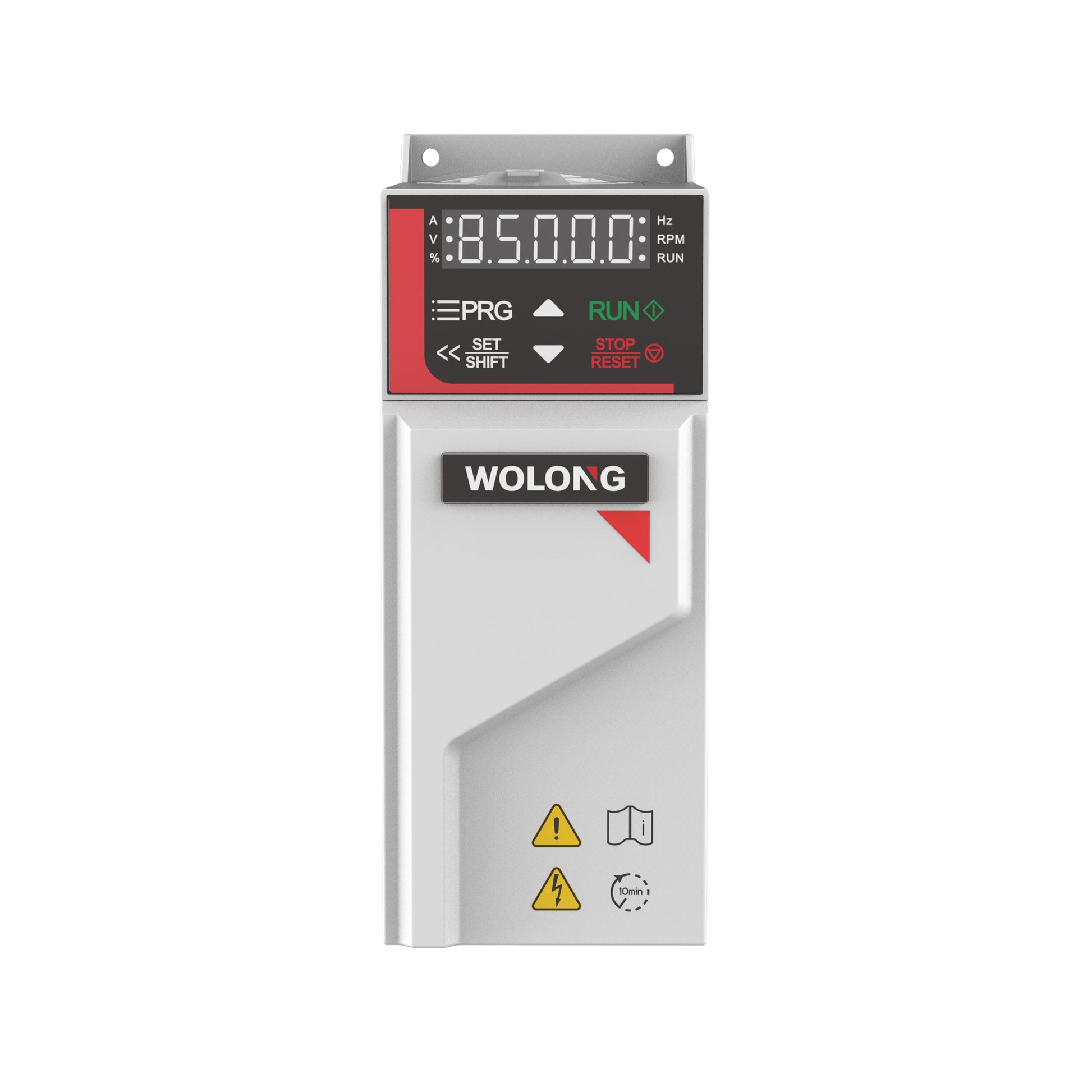

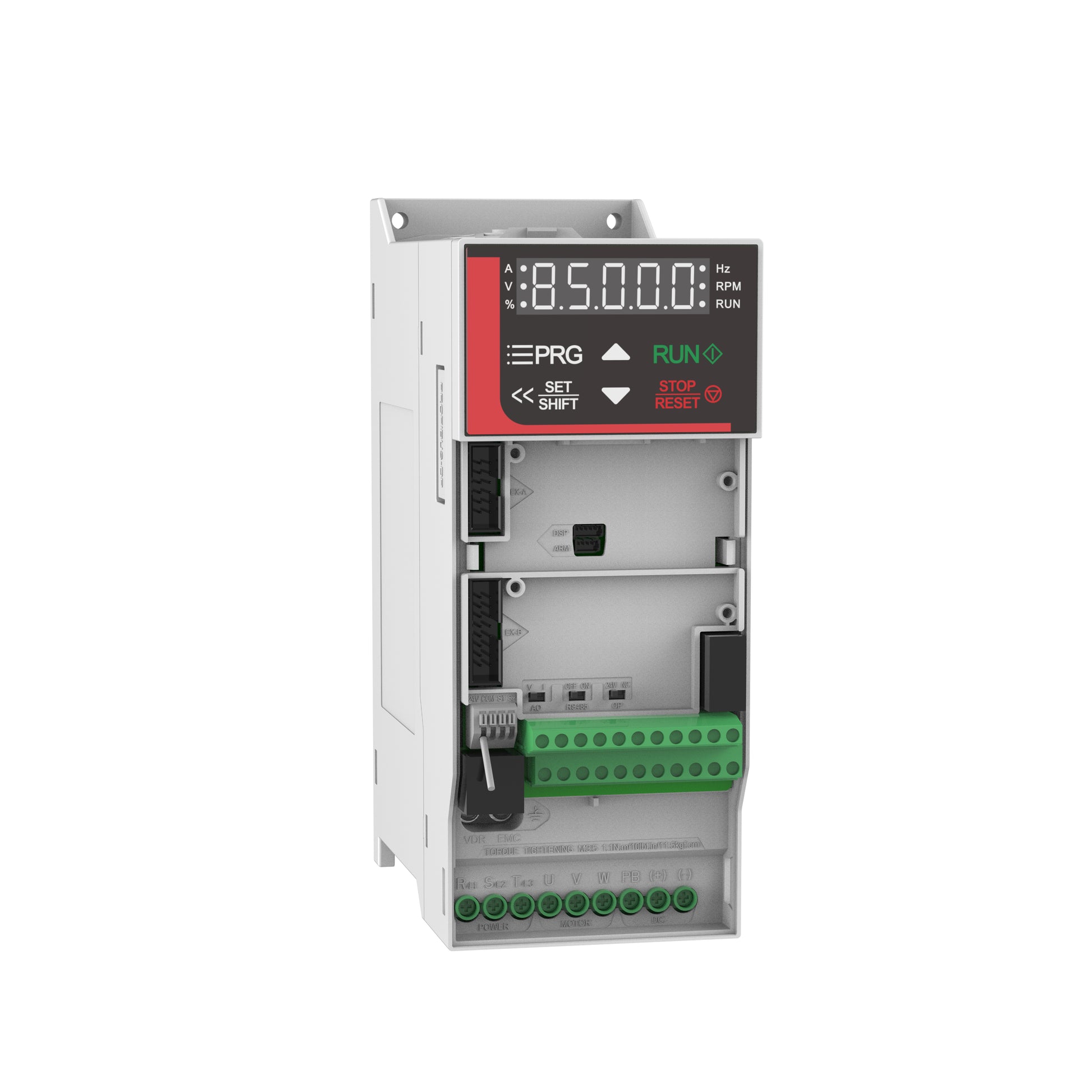

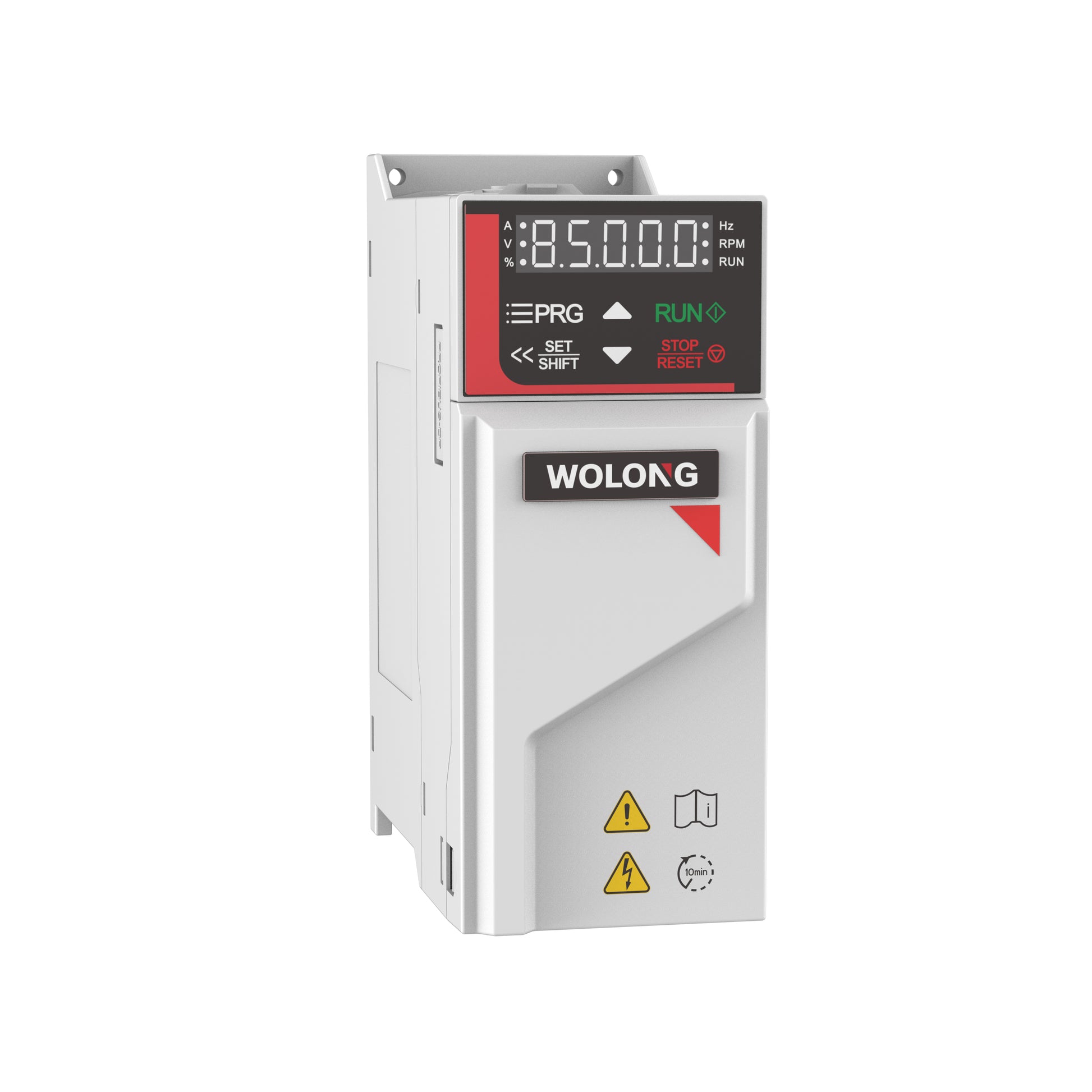

WD200 General-Purpose AC Drive
WD200 General-Purpose AC Drive
Regular price
$86.00 USD
Regular price
Sale price
$86.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Rated voltage and power | 380-480 V, 3-phase; 0.75-710 kW |
|---|---|
| Power supply frequency | 50 / 60 Hz +/-5% |
| Supported motor types | Three-phase asynchronous motor (IM); permanent-magnet synchronous motor (PMSM) |
| Control modes | V/F, sensorless vector control (SVC), feedback vector control (FVC), V/F separation control |
| Speed range | 1:200 (SVC); 1:1000 (FVC) |
| Starting torque | 150% at 0.5 Hz (SVC); 200% at 0 Hz (FVC) |
| Overload capacity | G heavy duty: 150% rated current for 60 s; P standard duty: 120% for 60 s |
| Output frequency | 0-599 Hz |
| Standard communication | Modbus RTU / RS485 |
| Optional communication | PROFIBUS-DP, PROFINET, CANopen |
| Installation | DIN-rail, wall, flange or self-standing mounting |
| Protection and temperature | IP20; -10 to +50 C, derating required above 40 C |
