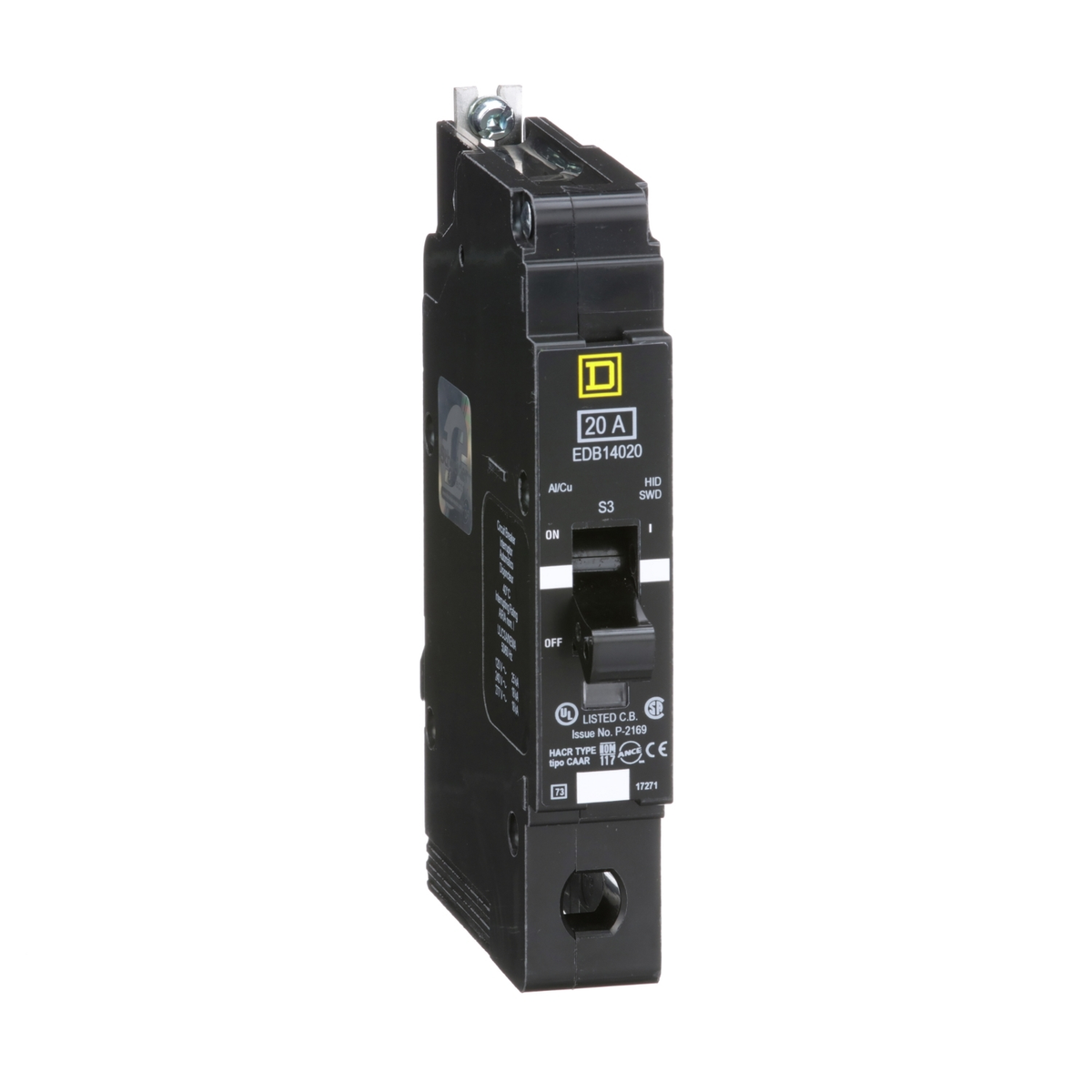

EDB14020 Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on
EDB14020 Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on
Regular price
$71.28 USD
Regular price
Sale price
$71.28 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Range | 125 A Frame EDB-EGB-EJB |
|---|---|
| Product Type | Miniature circuit-breaker |
| Device Short Name | EDB |
| Module Type | E-Frame |
| Trip Unit Rating | 875 A |
| Rated Current | 20 A |
|---|---|
| Maximum Operating Voltage | 277 V AC |
| AWG Gauge | 12 AWG...6 AWG aluminium 14 AWG...6 AWG copper |
| Breaking Capacity | 18 kA 277 V AC 18 kA 240 V AC 25 kA 120 V AC 18 kA 120/240 V AC |
| Circuit Breaker Application | HID rated Switching Duty rated HACR rated |
| Electrical Connection | Lugs aluminium |
| Holding Current | 270 A |
| Local Signalling | Trip indicator |
| Mounting Mode | Bolt-on |
| Number of Poles | 1 |
| Number of Spaces | 1 |
| Number of Spaces Required | 1 |
| Product Destination | NF panelboard |
| Protect Type | Short-circuit Overload |
| Trip Unit Technology | Thermal-magnetic |
| Breaking Capacity Code | D |
| Tightening Torque | 30.09 lbf.in (3.4 N.m) 0.004…0.02 in² (2.5…16 mm²) (14 AWG...6 AWG) |
| Height | 5.66 in (143.76 mm) |
| Width | 0.98 in (24.89 mm) |
| Depth | 4.05 in (102.87 mm) |
| Product Weight | 2 lb(US) (0.9 kg) |
